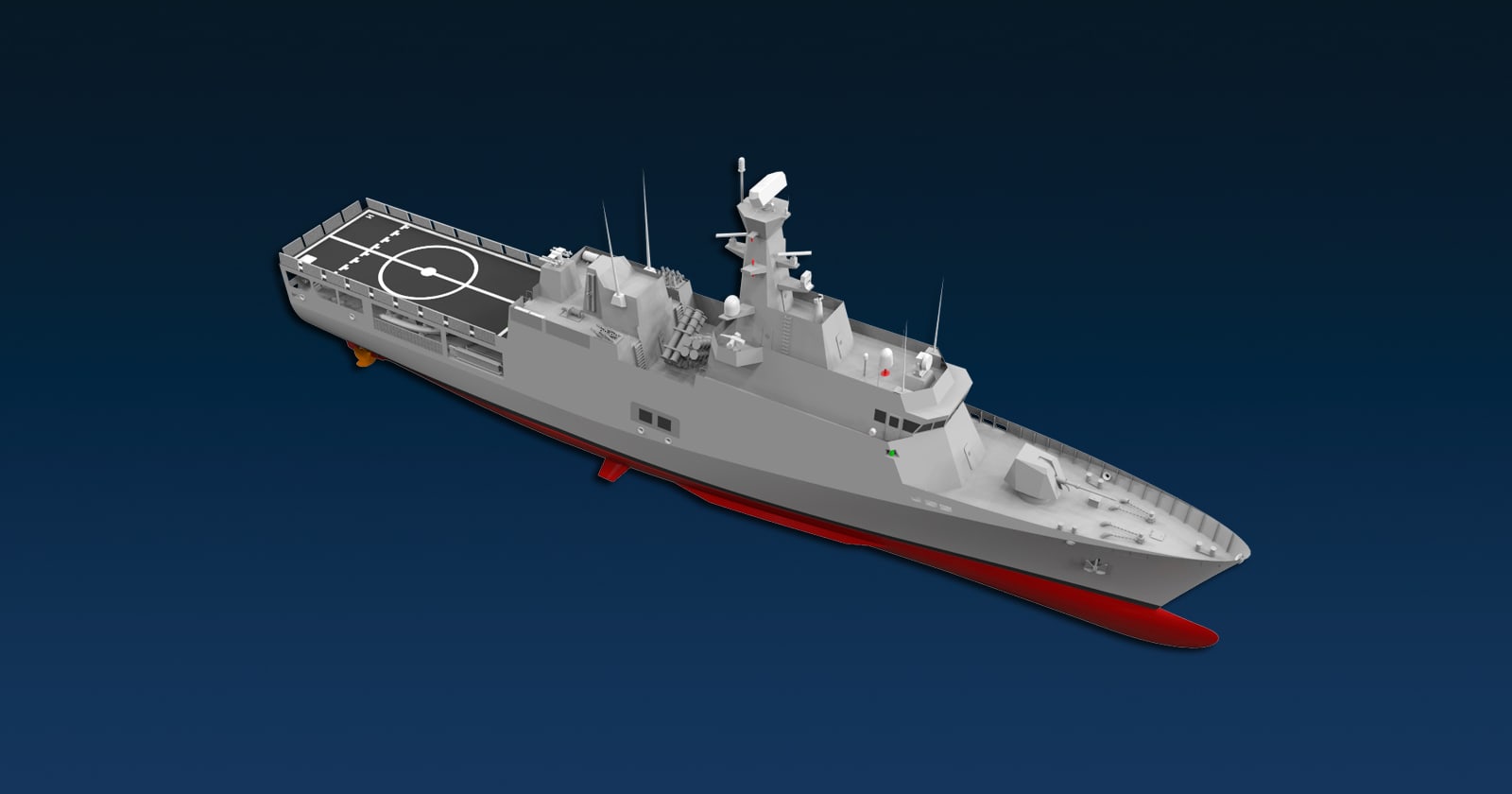

OPV - Heavy Duty 75

OPV - Heavy Duty 75

Designed to undertake surveillance/reconnaissance-patrol duties to perform surface warfare, air defense warfare  and functions to prevent illegal activities in exclusive economic zones with highly reliable survivability platform. The ship can operate at high sea conditions to achieve tough, significant and staminal missions.

Missions

  • Operating in tropical environment and conducting border patrols, territorial defense and maritime operations up to Exclusive Economic Zone (EEZ)
  • Maritime Security Operation (Anti-piracy, anti-terrorism, anti-smuggling, anti-human trafficking, anti-drug operations and pollution control capability)
  • Anti-Surface Warfare and Anti-Air Capability
  • Cost effective, robust, easy to operate and maintain
  • Capable of helicopter operations and can accommodate any heavy helicopter at the helideck
    		•

    General Specifications

    General Information
    Length : 75 m
    Beam max : 12 m
    Draught : 3.3 m
    Displacement : 1.320 tonnes
    Performance
    Speed : 24/15 knots
    Range : 3.000 nm
    Endurance : 15 days
    Accommodation
    Crew : 53 Crew Members

    Technology & Combat Systems

    Propulsion & Energy Systems
    Propulsion : CODAD Configuration with CPP
    Engines : 2 x Marine Diesel Engines
    Navigation
    Nautical Eqp : Navigation Radar (LPI), DGPS, Echosounder, EM Log, GMDSS, Ship Data Distribution System, Meterological System
    Weapon & Sensor Suite
    Weapons : 76 mm Main Gun, 2x 12.7 mm (STAMP-2 RsMG), 1x4 SAM (SUNGUR), 2x4 SSM (ATMACA), CHAFF/IR
    Sensors : 3D Surveillance Radar, Fire Control Radar with E/O, EOD, IFF, WAIS, ESM
    Communication : HF, UHF and VHF, SART, EPIRB, Military Link System, SATCOM, CCTV
