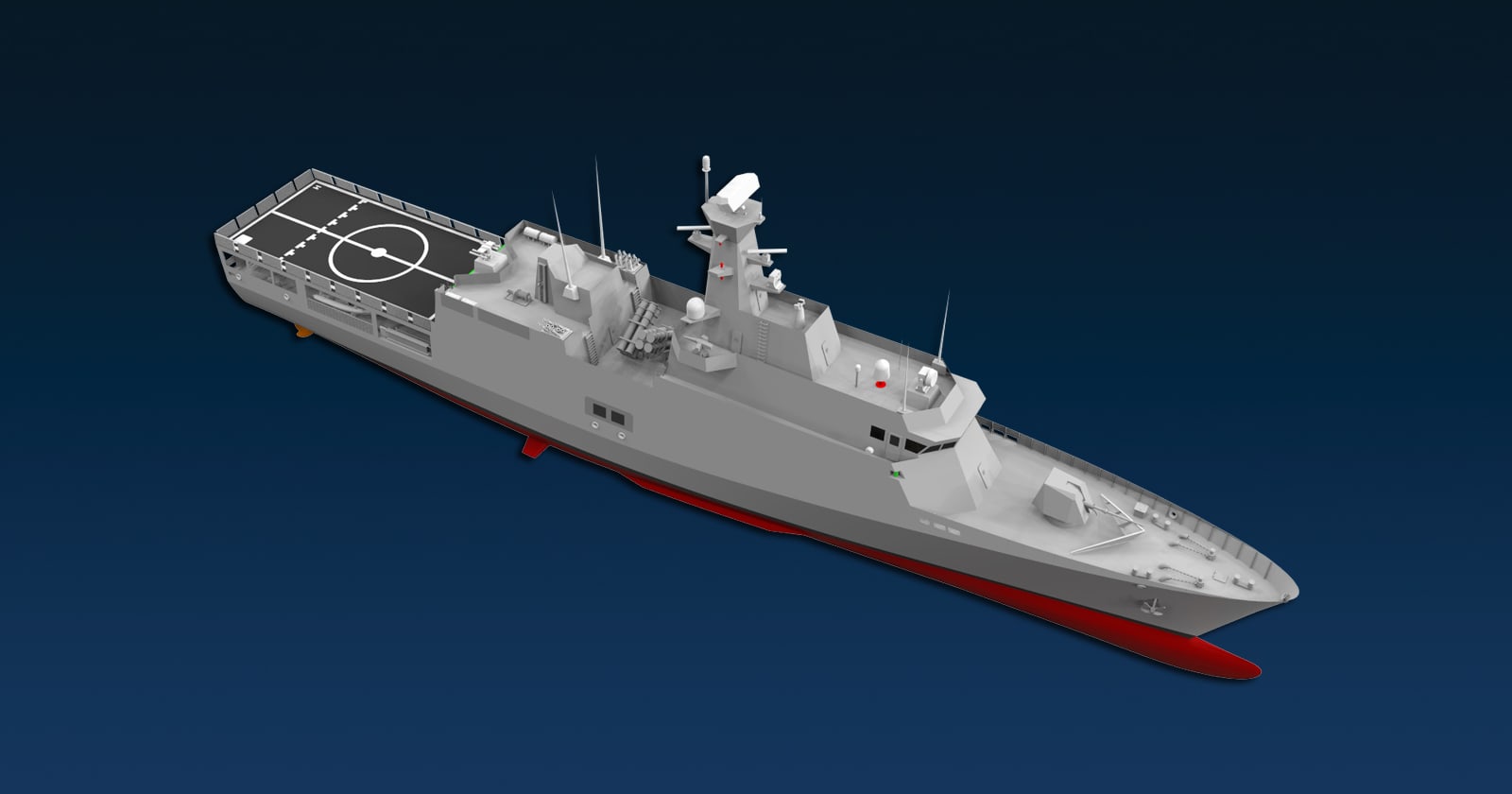

OPV - Heavy Duty 85

OPV - Heavy Duty 85

Designed to undertake surveillance/reconnaissance-patrol duties to perform surface warfare, air defense warfare, and functions to prevent illegal activities in exclusive economic zones with highly reliable survivability platform. The ship can operate at high sea conditions to achieve tough, significant and staminal missions.

Missions

  • Intelligence, Surveillance and Reconnaissance (ISR) Operations
  • Operating in heavy sea conditions and conducting border patrols, territorial defense and maritime operations up to Exclusive Economic Zone (EEZ)
  • Maritime Security Operation (Anti-piracy, anti-terrorism, anti-smuggling, anti-human trafficking, anti-drug operations and pollution control capability)
  • Control movement of mission modules for safe and efficient launch and handling
  • Capable of helicopter operations and can accommodate any heavy helicopter at the helideck
    		•

    General Specifications

    General Information
    Length : 85 m
    Beam max : 12.5 m
    Draught : 3.4 m
    Displacement : 1.500 tonnes
    Performance
    Speed : 24/15 knots
    Range : 3.500+ nm
    Endurance : 15 days
    Accommodation
    Crew : 73 Crew Members

    Technology & Combat Systems

    Propulsion & Energy Systems
    Propulsion : CODAD Configuration with CPP
    Engines : 2 x Marine Diesel Engines
    Navigation
    Nautical Eqp : Navigation Radar (LPI), DGPS, Echosounder, EM Log, GMDSS, Ship Data Distribution System, Meterological System
    Weapon & Sensor Suite
    Weapons : 76 mm Main Gun, 2x4 SSM (ATMACA), 1x4 SAM (SUNGUR), 2x12.7 mm (RsMG STAMP-2), CHAFF/IR
    Sensors : 3D Surveillance Radar, Fire Control Radar with E/O, EOD, IFF, WAIS, ESM
    Communication : HF, UHF and VHF, SART, EPIRB, Military Link System, SATCOM, CCTV
