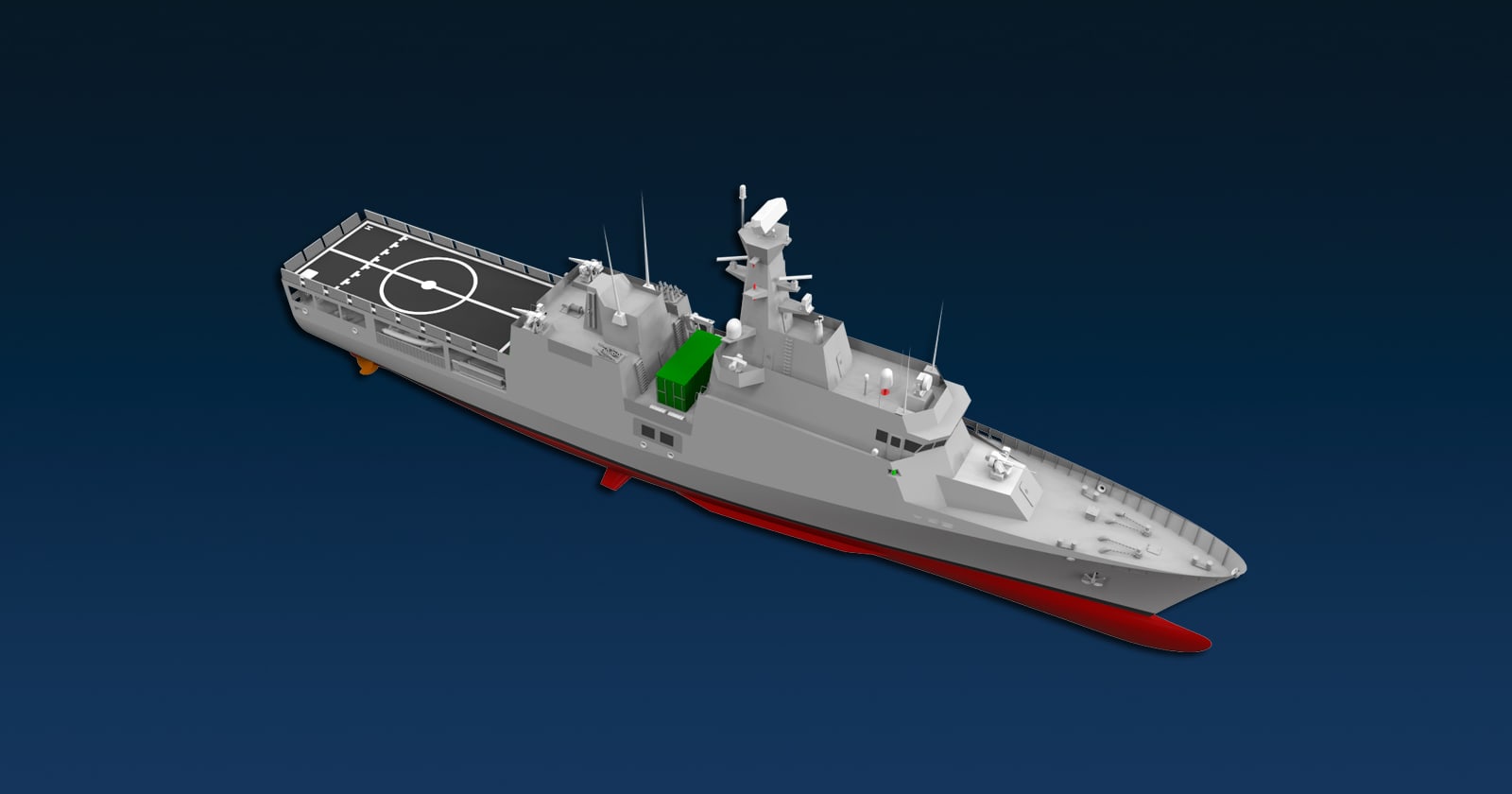

OPV - Multi Mission 75
Designed to undertake surveillance/reconnaissance-patrol duties to perform surface warfare and functions to prevent illegal activities in exclusive economic zones with highly reliable survivability platform. The ship can operate at high sea conditions to achieve tough, significant and staminal missions.
Missions
| Operating in tropical environment and conducting border patrols, territorial defense and maritime operations up to Exclusive Economic Zone (EEZ)Maritime Security Operation (Anti-piracy, anti-terrorism, anti-smuggling, anti-human trafficking, anti-drug operations and pollution control capability)Cost effective, robust, easy to operate and maintainCapable of helicopter operations and can accommodate any heavy helicopter at the helideck |
General Specifications
General Information
| Length |
: |
75 m |
| Beam max |
: |
12 m |
| Draught |
: |
3.3 m |
| Displacement |
: |
1.320 tonnes |
Performance
| Speed |
: |
24/15 knots |
| Range |
: |
3.000+ nm |
| Endurance |
: |
15 days |
Technology & Combat Systems
Propulsion & Energy Systems
| Propulsion |
: |
CODAD Configuration with CPP |
| Engines |
: |
2 X Marine Diesel Engines |
Navigation
| Nautical Eqp |
: |
Navigation Radar (LPI), DGPS, Echosounder, EM Log, GMDSS, Ship Data Distribution System, Meterological System |
Weapon & Sensor Suite
| Weapons |
: |
30 mm Main Gun, 2x 12.7 mm (STAMP-2 RsMG), 2x 25 mm (STOP- RsMG), CHAFF/IR |
| Sensors |
: |
3D Surveillance Radar, Fire Control Radar with E/O, EOD, IFF, WAIS, ESM |
| Communication |
: |
HF, UHF and VHF, SART, EPIRB, Military Link System, SATCOM, CCTV |
