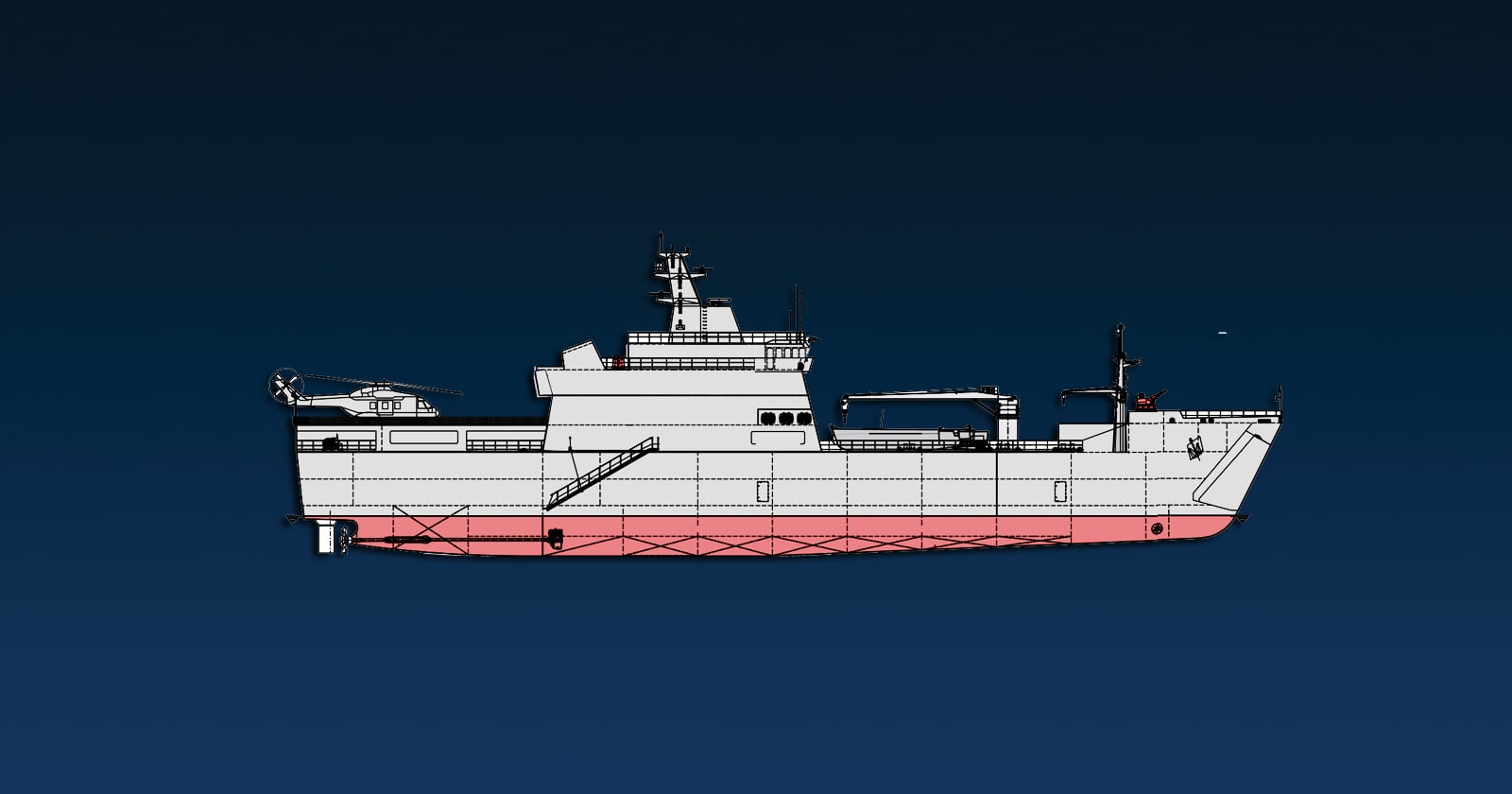

LST - 100 Landing Ship Tank

LST - 100 Landing Ship Tank

Missions

  • The ship capable of carrying out various functions within Amphibious Operation such as transportation of troops and vehicles, Command & Control of Combined Joint Task Force
  • To land embarked vehicles, personnel with all their weapons, by bow door and ramp
  • Emergency Medical and Life Support for LST embarked personnel
  • Land personnel, vehicles and supplies and poorly equipped areas through on-board vessels
  • During Peace time, it provides humanitarian aid to disaster area
    		•

    General Specifications

    General Information
    LOA : 100 m
    Beam : 16.25 m
    Depth : 12 m
    Draft : 4.16 m
    Displacement : 3.800 tonnes
    Performance
    Speed : 18+/15 knots
    Range : 5.000 nm
    Endurance : 10 days with marine unit/30 days crew only
    Accommodation
    Crew : 516 Crew Members

    Technology & Combat Systems

    Propulsion & Energy Systems
    Propulsion : CODAD Configuration with CPP
    Engines : 4 x Marine Diesel Engines
    Navigation
    Nautical Eqp : Navigation Radar (LPI), 2x Fiber Optic, INS, WECDIS, DGPS, Echo Sounder, EM Log, Ship Data Distribution System
    Weapon & Sensor Suite
    Weapons : 2x 40 mm Gun, 2x 12.7 mm STAMP, 2x PHALANX, CHAFF/IR Decoy, Torpedo Counter, Measure System
    Sensors : 3D Surveillance Radar, IRST, LWS, ESM, IFF, WAIS
    Communication : HF, UHF and VHF, SART, EPIRB, Military Link System, SATCOM, CCTV
